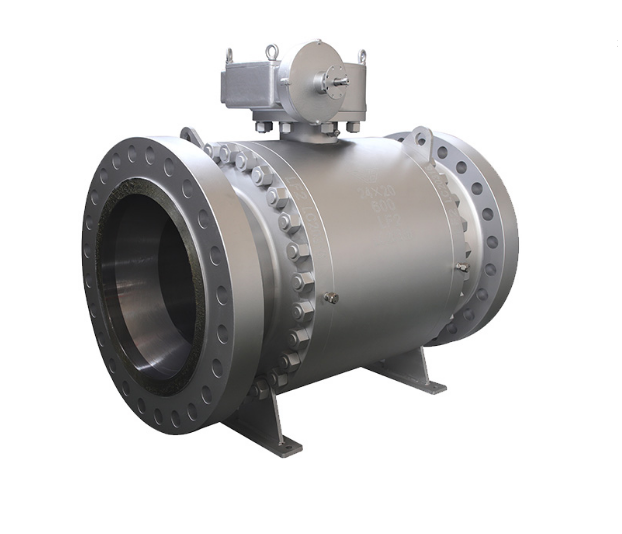

Ball Valve, Long Pattern, 600 LB, RF, ASME B16.10, ASTM A216 Gr WPB, Gear Operator

Name: Ball Valve, Long Pattern, 600 LB, RF, ASME B16.10, ASTM A216 Gr WPB, Gear Operator
SKU: 493
Availability: InStock

د.إ4,189.40 – د.إ33,725.45

Quick Specs:

Ball Valve, NPS 4 (DN 100) Reduced Bore, Cl 600 (PN 100), RF (Raised Face), 3- piece, split body, floating, A105N Body, 316 Ball,316 Stem, RPTFE Seat insert, No O-ring (stem/seat), Gear Operation; Additional Info.: API 6D design, F-F dimension 432mm, A193 B7&A194 2H+ZN bolting, Temp 0/50deg C, Pressure 100Bar, Fire safe API 607, C.A.3mm Deviation : side entry instead of top entry

Ball Valve, NPS 6 (DN 150) Reduced Bore, Cl 600 (PN 100), RF (Raised Face), 3- piece, split body, trunnion, A105N Body, 316 Ball, 316 Seat retainer, 316 Stem, RPTFE Seat insert, Viton O-ring (stem/seat), Gear Operation; Additional Info.: API 6D design, F-F dimension 559mm, A193 B7&A194 2H+ZN bolting, Temp 0/50deg C, Pressure 100Bar, Fire safe API 607, C.A.3mm Deviation : side entry instead of top entry

Ball Valve, NPS 8 (DN 200) Reduced Bore, Cl 600 (PN 100), RF (Raised Face), 3- piece, split body, trunnion, A105N Body, 316 Ball, 316 Seat retainer, 316 Stem, RPTFE Seat insert, Viton O-ring (stem/seat), Gear Operation; Additional Info.: API 6D design, F-F dimension 660mm, A193 B7&A194 2H+ZN bolting, Temp 0/50deg C, Pressure 100Bar, Fire safe API 607, C.A.3mm Deviation : side entry instead of top entry

Ball Valve, NPS 12 (DN 300) Reduced Bore, Cl 300 (PN 50), RF (Raised Face), 3- piece, split body, trunnion, A105N Body, 316 Ball, 316 Seat retainer, 316 Stem, RPTFE Seat insert, Viton O-ring (stem/seat), Gear Operation; Additional Info.: API 6D design, F-F dimension 648mm, A193 B7&A194 2H+ZN bolting, Temp 0/50deg C, Fire safe API 607, C.A.3mm Deviation : side entry instead of top entry

MANUFACTURER

FBV

PRODUCT CATEGORY

Trunnion Ball Valve

Model

Product Description

FBV trunnion-mounted ball valves are available in various configurations, including two-piece side entry, three-piece side entry, welded body, and top entry designs. These valves are produced using a broad selection of materials, such as carbon steel, stainless steel, duplex stainless steel, high-performance alloys, and other specialty metals. Engineered to meet API 6D design standards, all FBV trunnion ball valves undergo fire safety testing in accordance with API 6FA and API 607, ensuring reliable performance in critical applications.
