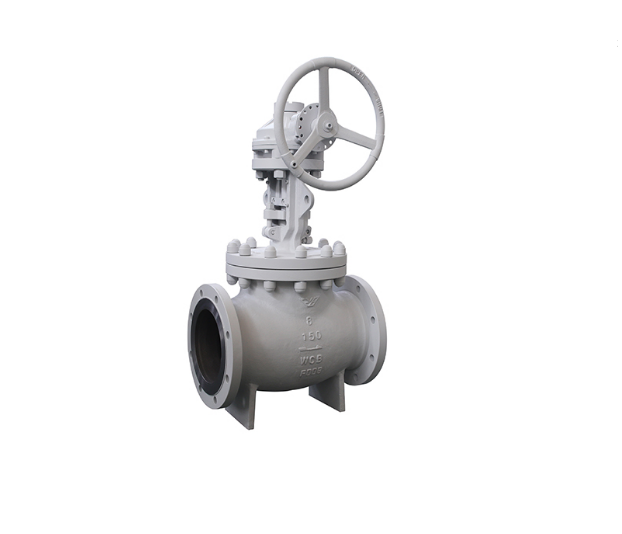

Globe Valve, 600 LB, RF, ASME B16.10, ASTM A216 Gr WPB, Hand Wheel
د.إ471.15 – د.إ15,518.19
Quick Specs:
Globe Valve, NPS 1 (DN 25) Reduced Bore, Cl 600 (PN 100), RF (Raised Face), Straight pattern, bolted bonnet, OS&Y, A105N Body, Other Seal surface of disc, Other Seal surface of seat, Other Stem, Non renewable metal Seat, Handwheel Operation, Additional Info.: A105N +STL disc, STL+body seat, A182 F316 stem, F-F dimension 216mm, A193 B7&A194 2H+ZN bolting, Fire safe API 607/6FA, C.A.3mm Deviation : Reduced bore instead of Full bore
Globe Valve, NPS 2 (DN 50), Cl 600 (PN 100), RF (Raised Face), Straight pattern, bolted bonnet, OS&Y, A216 WCB Body, Other Seal surface of disc, Other Seal surface of seat, Other Stem, Non renewable metal Seat, Handwheel Operation, Additional Info.: A105N +STL disc, STL+body seat, A182 F316 stem, BS 1873 design, F-F dimension 292mm, A193 B7&A194 2H+ZN bolting, Fire safe API 607/6FA, C.A.3mm Deviation : Full bore instead of reduced bore
Globe Valve, NPS 4 (DN 100), Cl 150 (PN 20), RF (Raised Face), Straight pattern, bolted bonnet, OS&Y, A216 WCB Body, Other Seal surface of disc, Other Seal surface of seat, Other Stem, Non renewable metal Seat, Handwheel Operation, Additional Info.: A105N +STL disc, STL+body seat, A182 F316 stem, BS1873 design, F-F dimension 292mm, A193 B7&A194 2H+ZN bolting, Fire safe API 607/6FA, C.A.3mm Deviation : Full bore instead of reduced bore
Globe Valve, NPS 8 (DN 200), Cl 600 (PN 100), RF (Raised Face), Straight pattern, bolted bonnet, OS&Y, A216 WCB Body, Other Seal surface of disc, Other Seal surface of seat, Other Stem, Non renewable metal Seat, Handwheel Operation, Additional Info.: A105N +STL disc, STL+body seat, A182 F316 stem, BS1873 design, F-F dimension 660mm, A193 B7&A194 2H+ZN bolting, Fire safe API 607/6FA, C.A.3mm Deviation : Full bore instead of reduced bore Globe Valve, NPS 8 (DN 200), Cl 600 (PN 100), RF (Raised Face), Straight pattern, bolted bonnet, OS&Y, A216 WCB Body, Other Seal surface of disc, Other Seal surface of seat, Other Stem, Non renewable metal Seat, Handwheel Operation, Additional Info.: A105N +STL disc, STL+body seat, A182 F316 stem, BS1873 design, F-F dimension 660mm, A193 B7&A194 2H+ZN bolting, Fire safe API 607/6FA, C.A.3mm Deviation : Full bore instead of reduced bore
