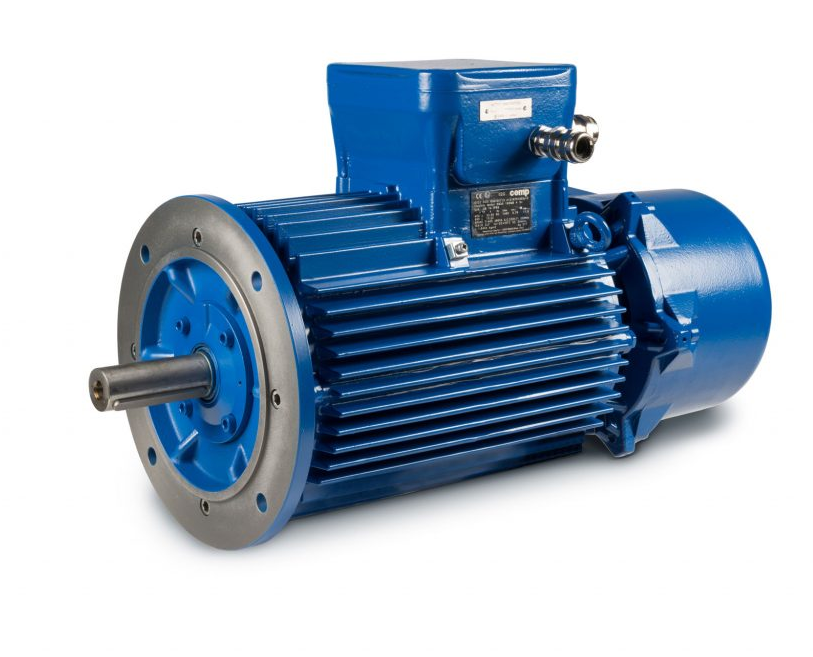

IEC Hazardous Area Brake Motors
Quick Specs:
According to standards: IEC/EN 600079-0, 1, 7, 31 IEC 60034-1, 2, 5, 6, 7, 8, 9, 12, 14, 30 IEC 60072 Motor enclosure Ex db (flameproof) and brake in separate Ex db enclosure Terminal box Ex db or Ex eb available Multiple choice for brake torque available Continuous duty or intermittent duty Ex db, Ex db eb, Ex tb, Ex tc ATEX category II2G, II2D, II2GD Gas group IIB, IIC Dust group IIIB, IIIC Temperature classes T3, T4, T5, T6 Surface temperature classes (Dust) T150°C – T135°C – T125°C – T100°C – T85°C Protection IP55, IP56, IP65, IP66 Frame size from 80 to 315 (IEC) Power 0,75 – 200 kW 400V/50Hz (multi voltage 380-400-420V/50Hz and 460V/60Hz) Pole 2, 4, 6, 8 and dual speed motor (separate windings or Dahlander) Special execution available up to -60/+80°C Forced cooling (IC416); Not ventilated (IC410) Premium efficiency IE3; Super-premium efficiency IE4; Available IE1/IE2 Certified ATEX and IECEx Certified GMEE
According to standards: IEC/EN 600079-0, 1, 7, 31 IEC 60034-1, 2, 5, 6, 7, 8, 9, 12, 14, 30 IEC 60072 Motor enclosure Ex db (flameproof) and brake in separate Ex db enclosure Terminal box Ex db or Ex eb available Multiple choice for brake torque available Continuous duty or intermittent duty Ex db, Ex db eb, Ex tb, Ex tc ATEX category II2G, II2D, II2GD Gas group IIB, IIC Dust group IIIB, IIIC Temperature classes T3, T4, T5, T6 Surface temperature classes (Dust) T150°C – T135°C – T125°C – T100°C – T85°C Protection IP55, IP56, IP65, IP66 Frame size from 80 to 315 (IEC) Power 0,75 – 200 kW 400V/50Hz (multi voltage 380-400-420V/50Hz and 460V/60Hz) Pole 2, 4, 6, 8 and dual speed motor (separate windings or Dahlander) Special execution available up to -60/+80°C Self-cooling (IC411) Premium efficiency IE3; Super-premium efficiency IE4; Available IE1/IE2 Certified ATEX and IECEx Certified GMEE
