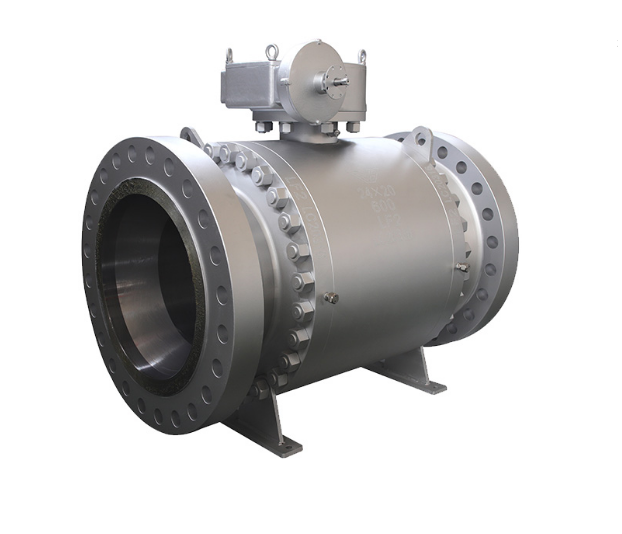

NPS 12 Ball Valve, Long Pattern, 600 LB, RF, ASME B16.10, ASTM A216 Gr WPB, Gear Operator

Ball Valve, NPS 12 (DN 300) Reduced Bore, Cl 600 (PN 100), RF (Raised Face), 3-piece, split body, trunnion, A105N Body, 316 Ball, 316 Seat retainer, 316 Stem, Devlon Seat insert, Viton O-ring (stem/seat), Gear Operation.
Additional Info.: API 6D design, F-F dimension 838mm, A193 B7&A194 2H+ZN bolting, Temp 0/50deg C, Pressure 100Bar, Fire safe API 607, C.A.3mm
Deviation : Delvon seat instead of PTFE seat, side entry instead of top entry
